853

4 products

Description

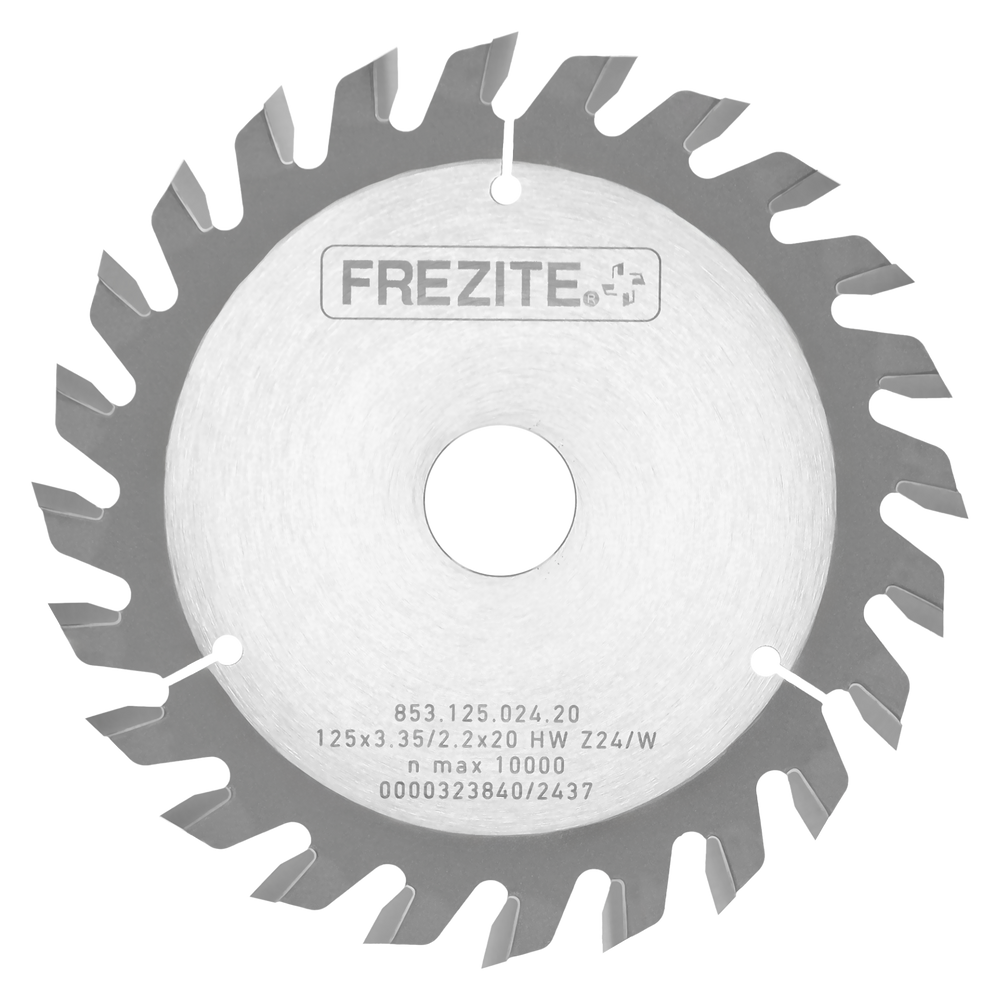

Application: For scoring groove on coated wood based materials. For finish cut on bottom of first board.

Machine: For sliding table saws machines with scoring saw.

Technical information: With alternate top bevel grinded carbide teeth (HW). Saw blade produced with long life tips for maximum wear resistance and extra-long lifetime. The cutting width from scoring saw blade must be the same as that of the main saw blade. To work with the feed. Recommended incision depth 1,0-2,0 mm.

D B b d Z Machine Ref.
100 3,35 2,2 20 20 SCM, Schelling 853.100.020.20
3,35 2,2 22 20 Altendorf, Striebig 853.100.020.22
120 3,35 2,2 20 24 Holzer, SCM 853.120.024.20
3,35 2,2 22 24 Altendorf, Martin 853.120.024.22
125 3,35 2,2 20 24 Paoloni 853.125.024.20
3,35 2,2 22 24 Altendorf, Martin 853.125.024.22
853
