863

44 products

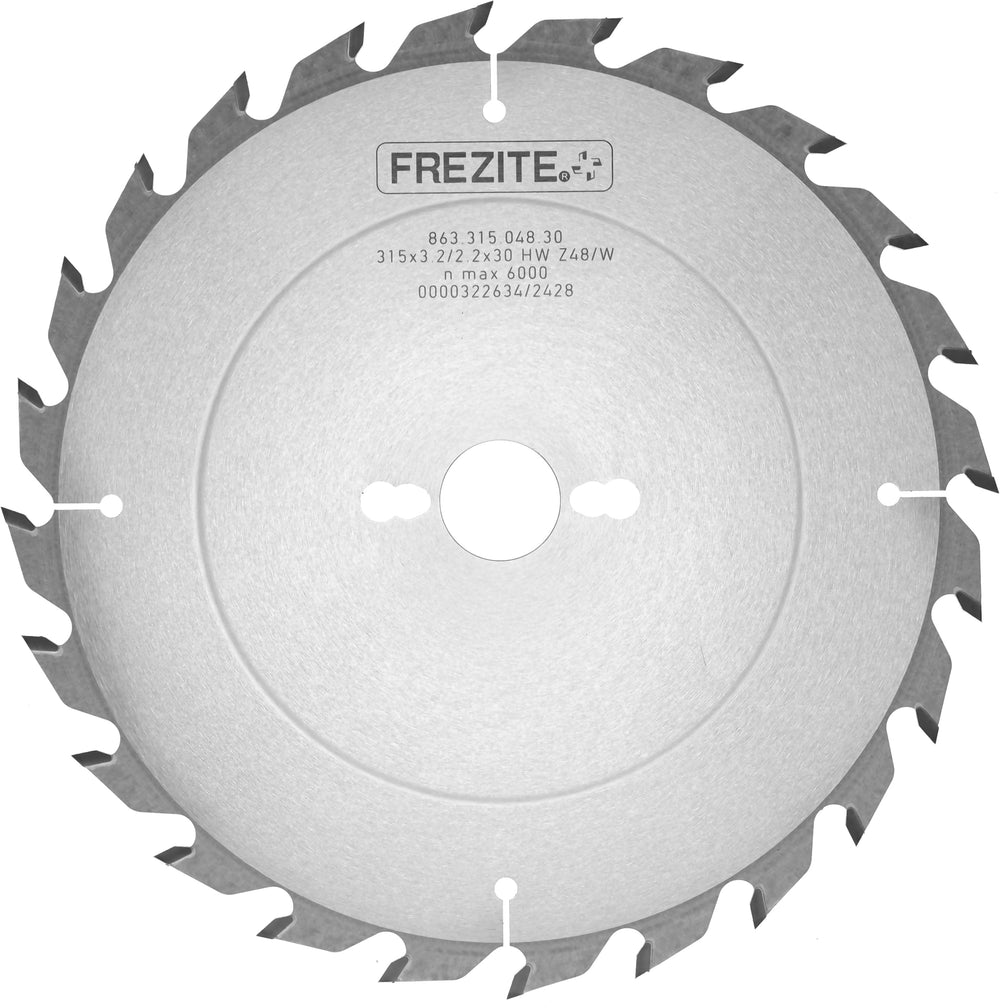

Description

Application: For longitudinal and cross cutting of softwood and hardwood, dry, uncoated wood based material.

Machine: For sliding table saw machines, table saws, portable machines, etc.

Technical information: With alternate top bevel grinded carbide teeth (HW).

D B b d Z NL/TK Ref.
150 3,2 2,2 30 24 863.150.024.30
3,2 2,2 35 36 863.150.036.30
3,2 2,2 30 48 863.150.048.30
180 3,2 2,2 30 30 863.180.030.30
3,2 2,2 30 42 863.180.042.30
3,2 2,2 30 56 863.180.056.30
200 3,2 2,2 30 36 NL30 863.200.036.30
3,2 2,2 30 48 NL30 863.200.048.30
3,2 2,2 30 60 NL30 863.200.060.30
250 3,2 2,2 30 40 NL30 863.250.040.30
3,2 2,2 35 40 863.250.040.35
3,2 2,2 30 48 NL30 863.250.048.30
3,2 2,2 30 60 NL30 863.250.060.30
3,2 2,2 30 80 NL30 863.250.080.30
275 3,2 2,2 20 48 863.275.048.20
3,2 2,2 20 72 863.275.072.20
300 3,2 2,2 30 36 NL30 863.300.036.30
3,2 2,2 30 48 NL30 863.300.048.30
3,2 2,2 35 48 863.300.048.35
3,2 2,2 30 60 NL30 863.300.060.30
3,2 2,2 30 72 NL30 863.300.072.30
3,2 2,2 25,4 96 863.300.096.26
3,2 2,2 30 96 NL30 863.300.096.30
315 3,2 2,2 30 28 NL30 863.315.028.30
3,2 2,2 30 48 NL30 863.315.048.30
3,2 2,2 30 60 NL30 863.315.060.30
330 3,2 2,2 30 80 NL30 863.330.080.30
350 3,5 2,5 30 54 NL30 863.350.054.30
3,5 2,5 30 72 NL30 863.350.072.30
3,5 2,5 30 84 NL30 863.350.084.30
3,5 2,5 30 108 NL30 863.350.108.30
400 3,5 2,5 30 48 NL30 863.400.048.30
3,5 2,5 30 60 NL30 863.400.060.30
3,5 2,5 30 84 NL30 863.400.084.30
3,5 2,5 30 96 NL30 863.400.096.30
3,5 2,5 30 120 NL30 863.400.120.30
450 4,0 2,8 30 66 NL30 863.450.066.30
4,0 2,8 30 96 NL30 863.450.096.30
4,0 2,8 30 138 NL30 863.450.138.30
500 4,0 2,8 30 72 NL30 863.500.072.30
4,0 2,8 35 72 863.500.072.35
4,0 2,8 30 144 NL30 863.500.144.30
4,2 2,8 30 108 NL30 863.500.108.30
550 4,2 3,2 30 84 NL30 863.550.084.30
4,4 3,2 30 120 NL30 863.550.120.30

# Saw blade produced with long life tips for maximum wear resistance and extra long lifetime.


Negative cutting angle saw blade for radial and pendulum machines.

D B b d Z NL/TK Ref.
250 3,2 2,2 30 40 NL30 863.250.140.30
300 3,2 2,2 30 36 NL30 863.300.136.30
3,2 2,2 30 48 NL30 863.300.148.30
350 3,2 2,2 30 42 NL30 863.350.142.30
400 3,8 2,8 30 48 NL30 863.400.148.30
420 3,8 2,8 40 96 863.420.096.40
450 4,4 2,8 30 54 NL30 863.450.154.30
520 4,4 3,2 30 60 NL30 863.520.060.30
550 4,8 3,4 30 72 NL30 863.550.172.30
