Description

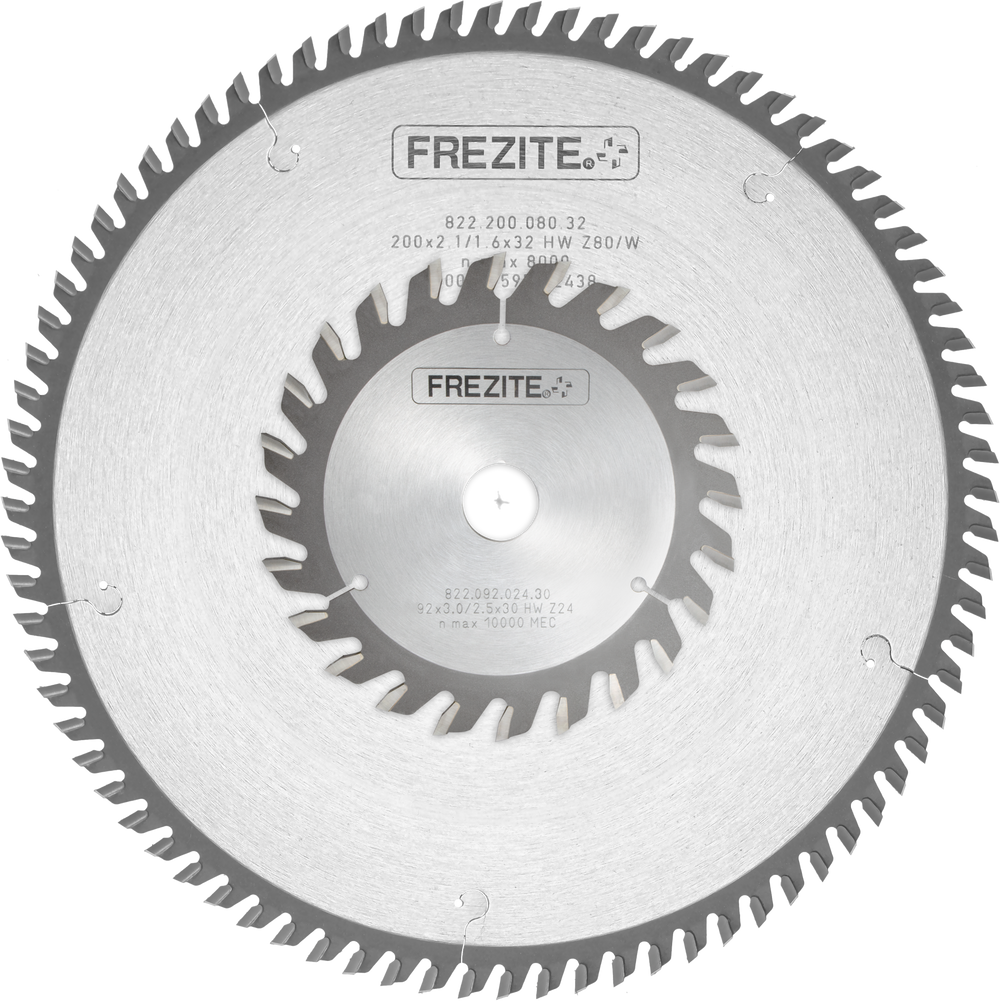

Application: Trimming set for removing glass ledges.
Machine: Special machines, glass ledge saws, etc.
Technical information: With carbide teeth (HW). With EL, ER. W and TFN grinded profile according to application and machine.
| D | B | b | d | Z | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|
| 92 | 3,0 | 2,5 | 30 | 24 | EL 45º | Rotox | 822.092.024.30 |
| 3,0 | 2,5 | 30 | 24 | ER 45º | Rotox | 822.092.124.30 | |
| 98 | 3,0 | 2,5 | 32 | 36 | EL 45º | Elumatec | 822.098.036.32 |
| 3,0 | 2,5 | 32 | 36 | ER 45º | Elumatec | 822.098.136.32 | |
| 200 | 2,1 | 1,6 | 32 | 80 | W | Elumatec | 822.200.080.32 |
| 2,2 | 1,8 | 30 | 100 | TFN | Rotox | 822.200.100.30 |
