CNC Saw Blades

19 products

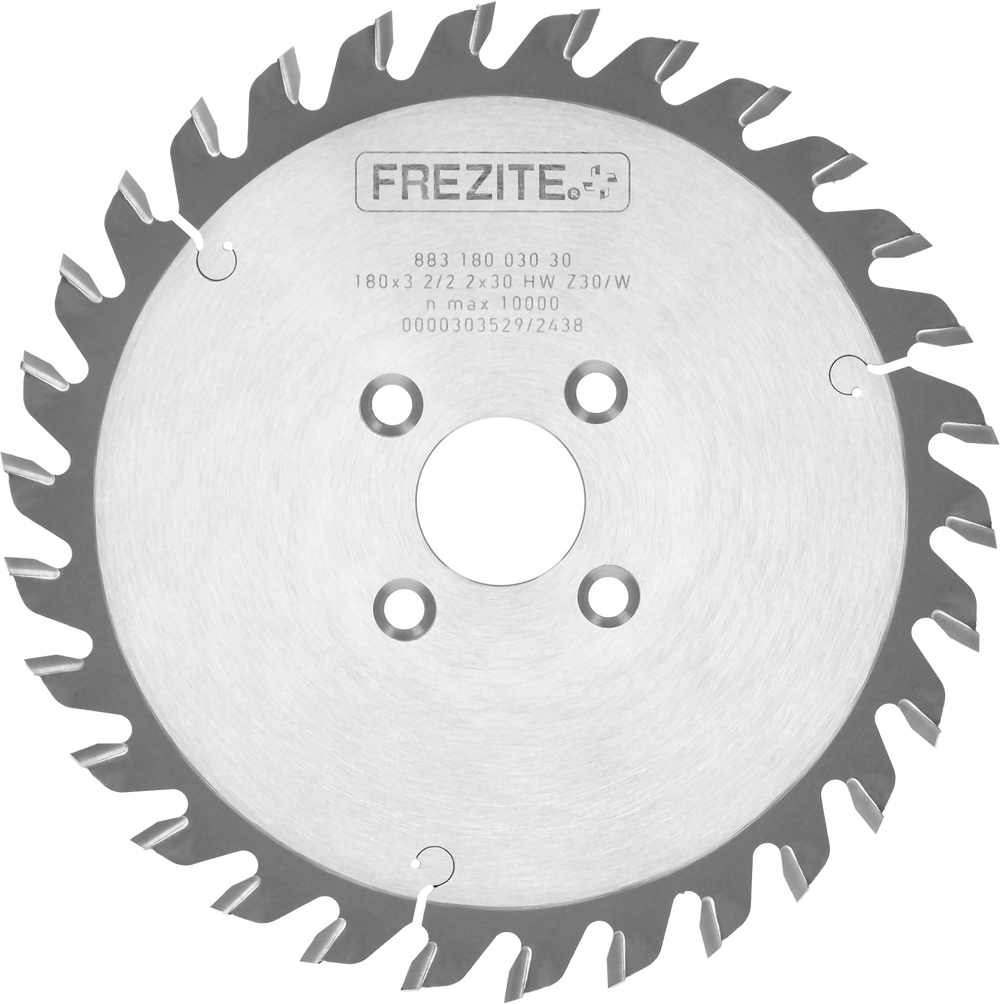

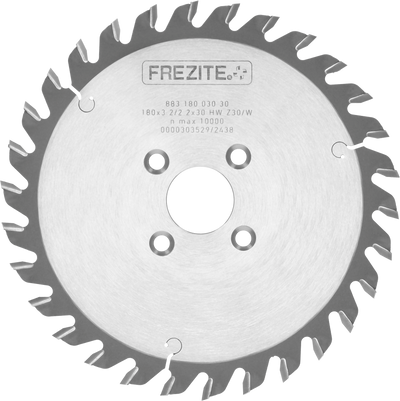

Saw Blade Application

883

883

Description

Application: For grooving, trimming and mitre cutting of softwood, hardwood and wood based materials.

Machine: For aggregates on CNC machining centers, etc.

Technical information: With flat, alternate or triple chip flat grinded carbide teeth (HW). With pine holes adjusted for the different models of aggregates on CNC machines.

D B b d Z NL/TK Machine Ref.
90 3,5 2,2 20 24 F Robland 883.090.024.20
100 3,2 2,2 30 20 F Weeke 883.100.020.30
120 3,2 2,2 20 24 W 3+3/4,5/35 SCM 883.120.024.20
3,2 2,2 30 24 W 4+4/6/48 A423.030.104.20/25 883.120.024.30
4,0 3,0 35 30 W 2/6/46+4/5,5-10/50
+ 4/5,5-10/50
Biesse, Buselato
Felder, AES		 883.120.030.35
125 3,2 2,2 30 36 W 4+4/5,5/48 Weeke 883.125.036.30
150 3,2 2,2 30 24 W 4+4/6/48 A423.030.104.20/25 883.150.024.30
3,2 2,2 30 36 W 4+4/6/48 A423.030.104.20/25 883.150.036.30
180 3,2 2,2 30 30 W 4/7/52 Homag, Weeke 883.180.030.30
3,2 2,2 30 36 W 4/7/52 Homag, Weeke 883.180.036.30
3,2 2,2 30 42 W 4/7/52 Homag, Weeke 883.180.042.30
3,2 2,2 30 56 W 4/7/52 Homag, Weeke 883.180.056.30
3,2 2,2 35 30 W 1/6/46+1/6/50 Biesse 883.180.030.35
3,2 2,2 35 58 W 1/6/46+1/6/50 Biesse 883.180.058.35
3,2 2,2 40 42 W 4+4/6/52 Benz(Flex) 883.180.042.40
3,2 2,2 40 56 W 4+4/6/52 Benz(Flex) 883.180.056.40
4,0 3,0 30 42 W 2/6/42+4/5,5-10/45 Felder 883.180.142.30
220 2,8 2,0 30 36 W 4/6,5/60 IMA 883.220.036.30
240 3,2 2,2 30 54 TF 4/5,6/52 Homag 883.240.054.30
3,2 2,2 40 54 TF 8/5,6/52 Homag 883.240.054.40
280 3,2 2,2 30 60 TF 2/7/42 Homag 883.280.060.30
300 3,2 2,2 50 72 W 6/5,5/80+1/6/80 Biesse
A423.050.125.60		 883.300.072.50
3,2 2,2 30 72 W 8/5,5/90 A423.030.103.60 883.300.072.30
