Description

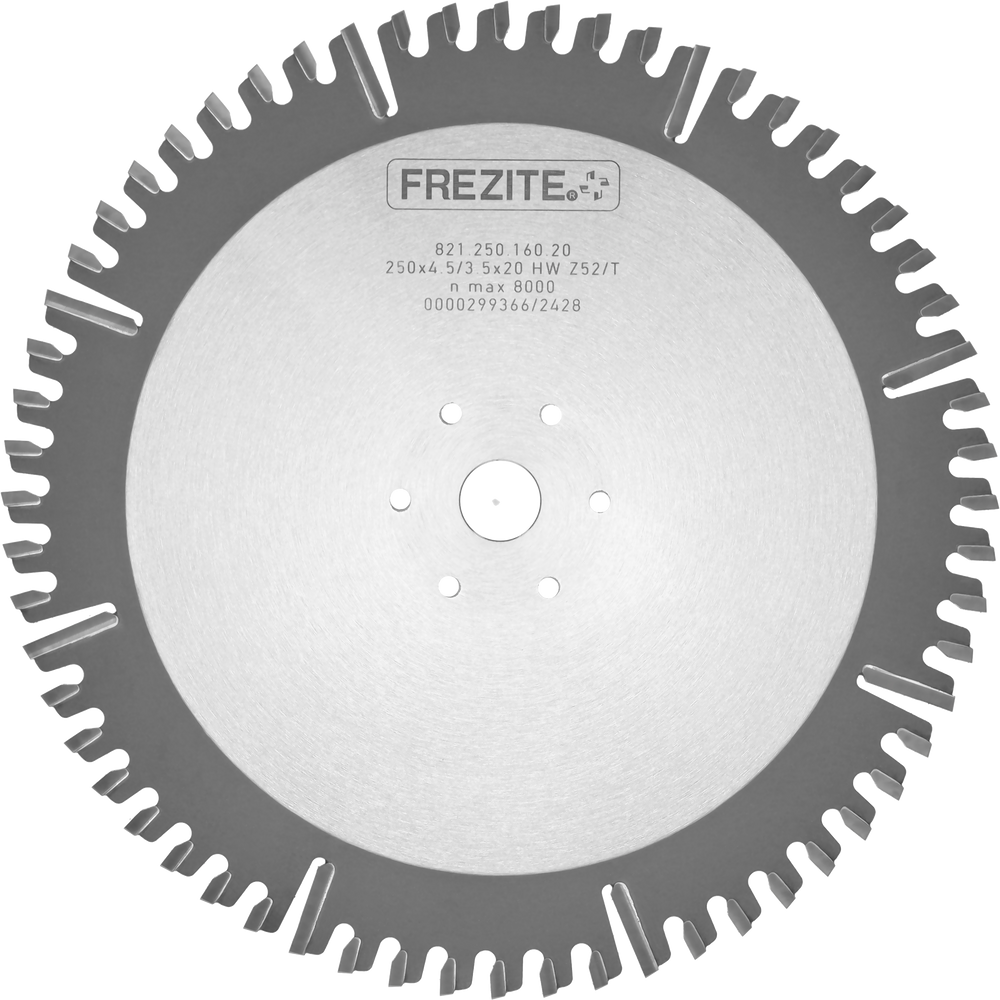

Application: Corner cleaning blade for outer profile corners in welded PVC frames.
Machine: CNC (Rotox, Sturz, Urban, etc.).
Technical information: With trapezoidal tooth grind in Carbide (HW). With long extra “cleaning” teeth for better finishing on the cut surface.
| D | B | b | d | Z | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|
| 170 | 4,5 | 3,5 | 20 | 16+4 | 6+6NLEsc.M6/40 | Rotox | 821.170.020.20 |
| 230 | 3,0 | 2,6 | 30 | 52+6 | 6NL5.3/50 | Sturz | 821.230.058.30 |
| 4,5 | 3,5 | 20 | 52+6 | 6NL5.3/50 | Sturz | 821.230.058.20 | |
| 250 | 3,3 | 2,6 | 32 | 52+8 | Urban | 821.250.060.32 | |
| 4,5 | 3,5 | 20 | 52+8 | 6NL5.3/50 | Sturz | 821.250.160.20 | |
| 4,5 | 3,5 | 30 | 52+8 | 6NL5.3/50 | Sturz | 821.250.160.30 |
