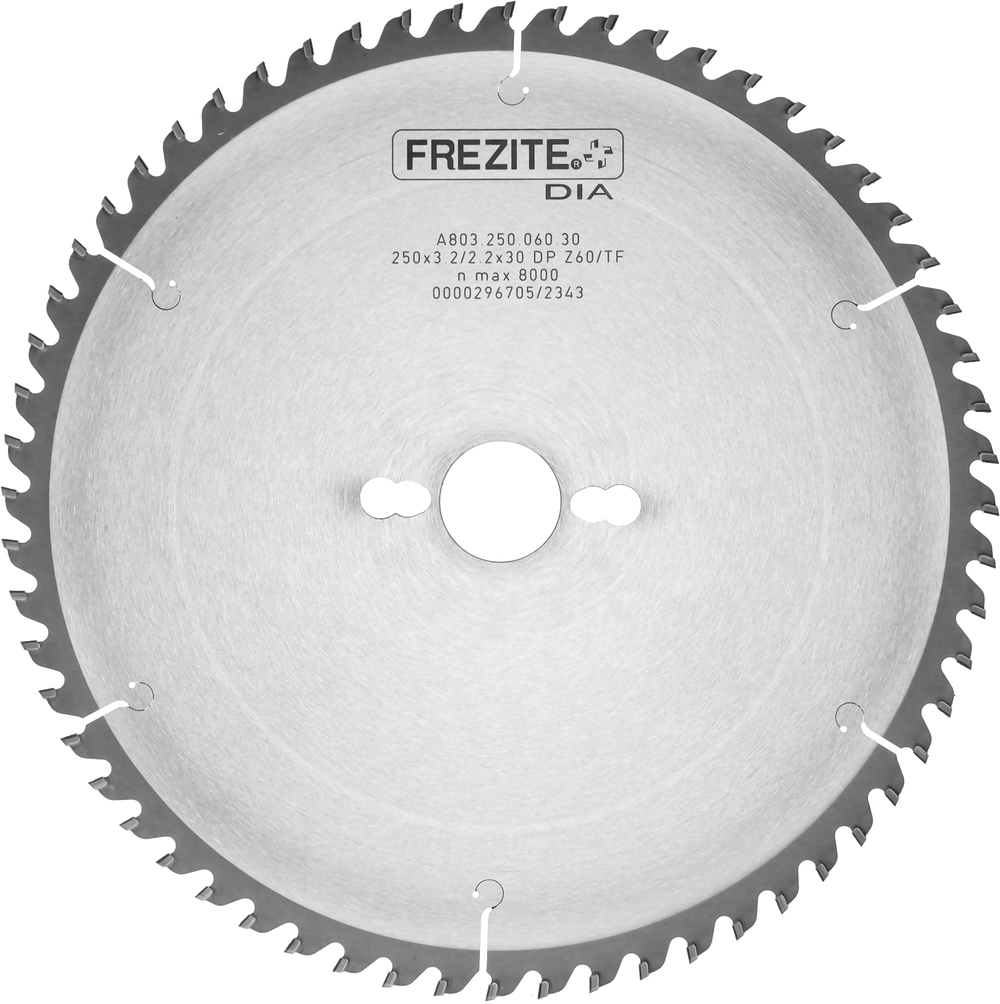

Application: For cutting of coated or uncoated wood based material such as chipboard, MDF, laminated boards, etc.
Machine: For sliding table saw machines, table saws, etc.
Technical information: With triple chip flat grinded polycrystalline teeth (DP). For finish cut quality with scoring saw blade.
| D | B | b | d | Z | DP | NL/TK | Ref. |
|---|---|---|---|---|---|---|---|
| 250 | 3,2 | 2,2 | 30 | 48 | 5 | NL30 | A803.250.048.30 |
| 3,2 | 2,2 | 30 | 60 | 5 | NL30 | A803.250.060.30 | |
| 3,2 | 2,2 | 30 | 80 | 5 | NL30 | A803.250.080.30 | |
| 300 | 3,2 | 2,2 | 30 | 72 | 5 | NL30 | A803.300.072.30 |
| 3,2 | 2,2 | 30 | 96 | 5 | NL30 | A803.300.096.30 |
| D | B | b | d | Z | DP | NL/TK | Ref. |
|---|---|---|---|---|---|---|---|
| 250 | 3,2 | 2,2 | 30 | 60 | 4 | NL30 | A803.250.160.30 |
| 3,2 | 2,2 | 30 | 80 | 4 | NL30 | A803.250.180.30 | |
| 300 | 3,2 | 2,2 | 30 | 72 | 4 | NL30 | A803.300.172.30 |
| 3,2 | 2,2 | 30 | 96 | 4 | NL30 | A803.300.196.30 | |
| 350 | 3,5 | 2,5 | 30 | 72 | 4 | NL30 | A803.350.272.30 |
