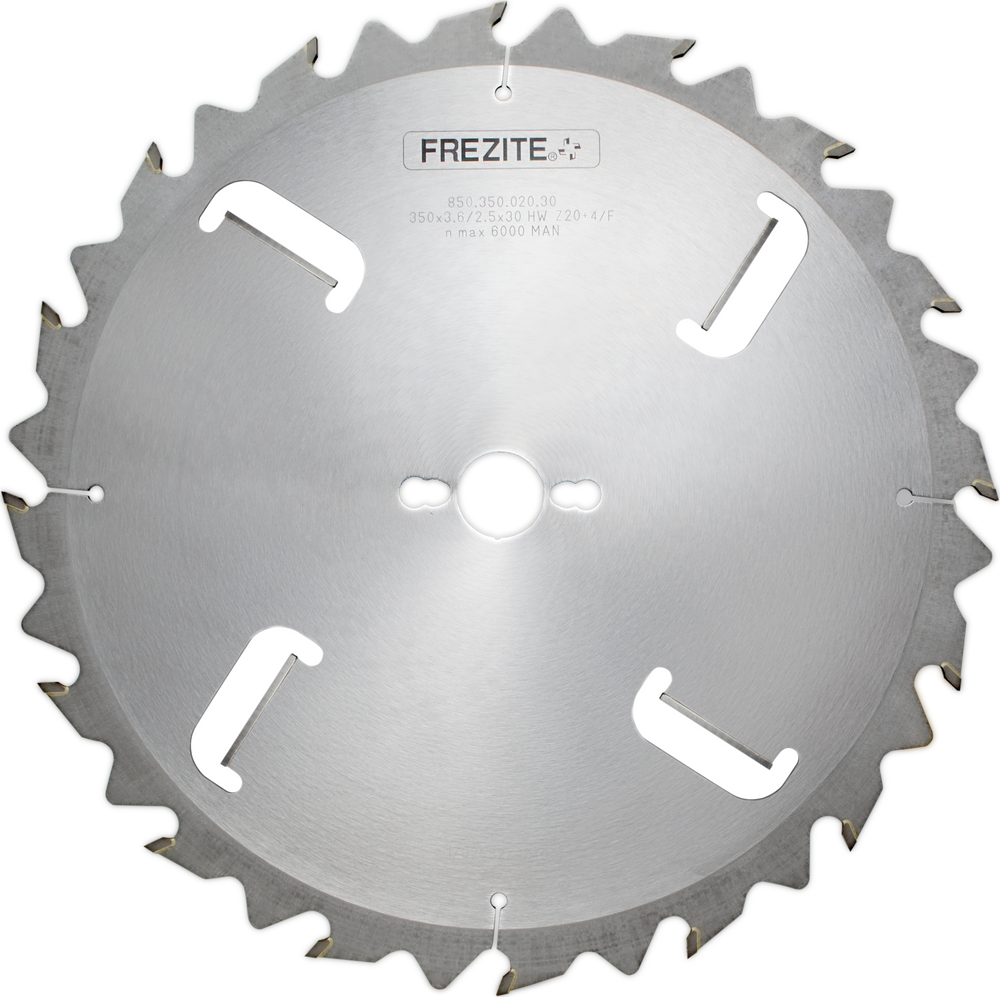

Description
Application: For longitudinal cutting of softwood and hardwood, dry up to 10%. wood moisture content.
Machine: For sliding table machines, table saws, etc.
Technical information: With flat grinded carbide teeth (HW). Internal wiper teeth for large wood height, preventing contact between wood and saw blade body. With chip thickness limitation for manual feeds.
| D | B | b | d | Z+RZ | NL | T max | FL max | Ref. |
|---|---|---|---|---|---|---|---|---|
| 300 | 3,4 | 2,2 | 30 | 18+3 | NL30 | 60 | 120 | 850.300.018.30 |
| 350 | 3,6 | 2,5 | 30 | 20+4 | NL30 | 80 | 140 | 850.350.020.30 |
| 400 | 4,2 | 2,8 | 30 | 24+4 | NL30 | 100 | 180 | 850.400.024.30 |
