Description

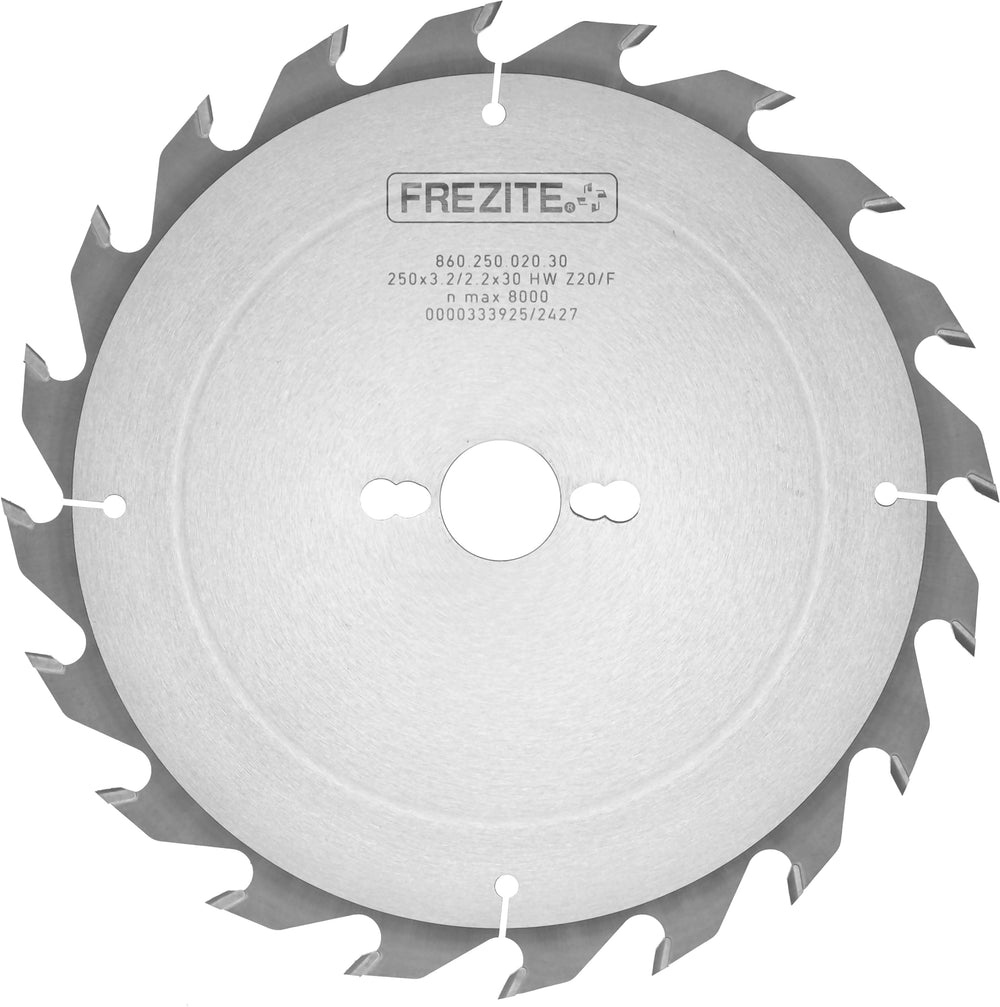

Application: For longitudinal cutting of softwood and hardwood, dry.
Machine: For single and double spindle multi-rip machines with horizontal or vertical spindles, sliding table saws, table saws, etc.
Technical information: With flat or triple chip flat grinded carbide teeth (HW). With large gullets for high chip evacuation.
| D | B | b | d | Z | α | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|---|
| 250 | 3,2 | 2,2 | 30 | 20 | 25º | NL30 | 860.250.020.30 | |
| 300 | 3,2 | 2,2 | 30 | 24 | 25º | NL30 | 860.300.024.30 | |
| 3,4 | 2,2 | 80 | 28 | 20º | Raimann | 860.300.128.80 # | ||
| 350 | 3,5 | 2,5 | 30 | 28 | 25º | NL30 | 860.350.028.30 | |
| 3,6 | 2,4 | 80 | 30 | 20º | Raimann | 860.350.030.80 ## | ||
| 400 | 4,0 | 2,8 | 30 | 32 | 25º | NL30 | 860.400.032.30 |
Glue line saw blades
| D | B | b | d | Z | Machine | Ref. |
|---|---|---|---|---|---|---|
| 300 | 4,0 | 2,8 | 80 | 28 | Raimann | 860.300.228.80 ### |
| 2,8 | 1,8 | 80 | 48 | Raimann | 860.300.248.80 ### | |
| 4,0 | 2,8 | 80 | 48 | Raimann | 860.300.148.80 ### |
