Application: Extreme thin kerf circular saw blade for longitudinal cutting of softwood and hardwood, dry.
Machine: For moulders, single and double spindle multi-rip machines with horizontal or vertical spindles, etc.

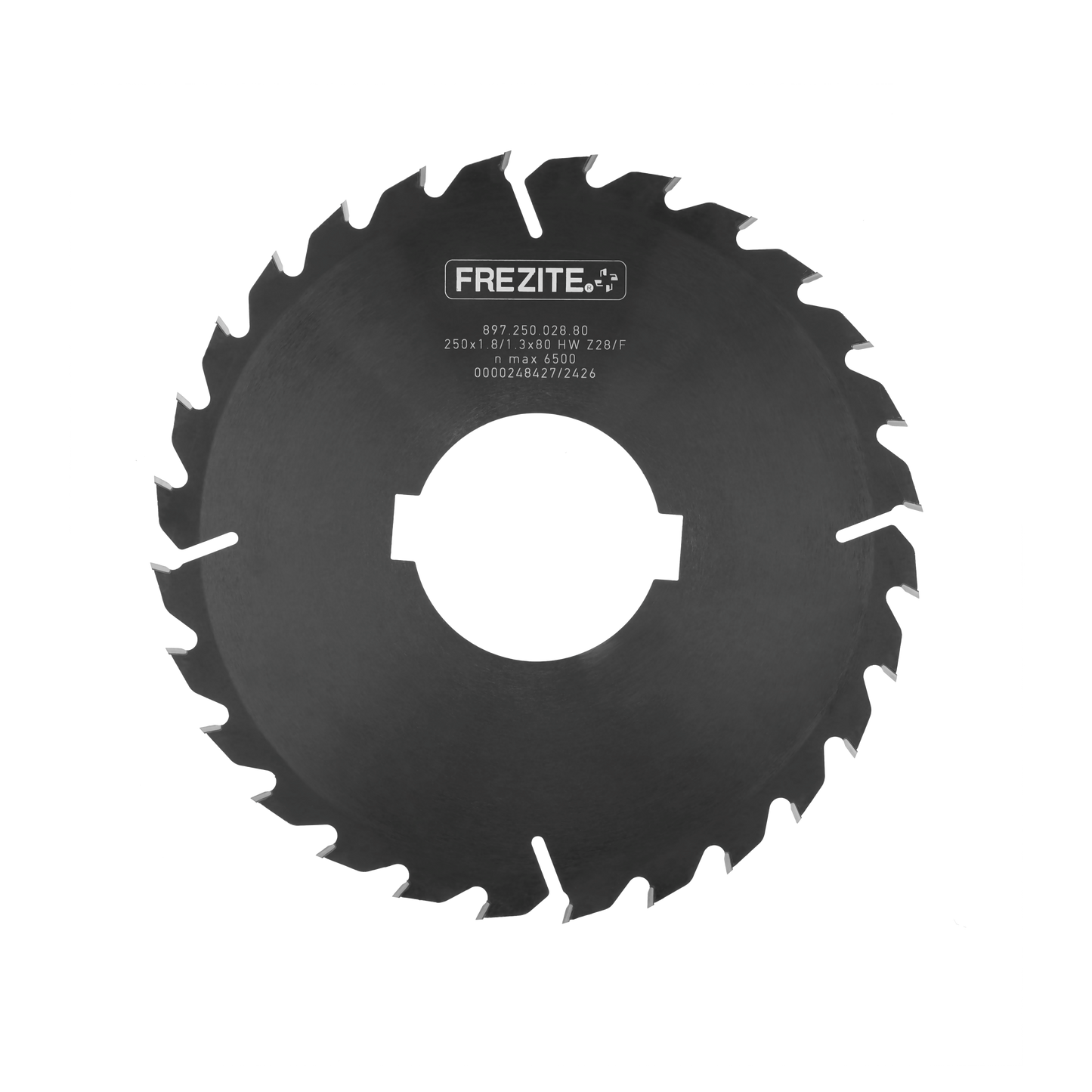

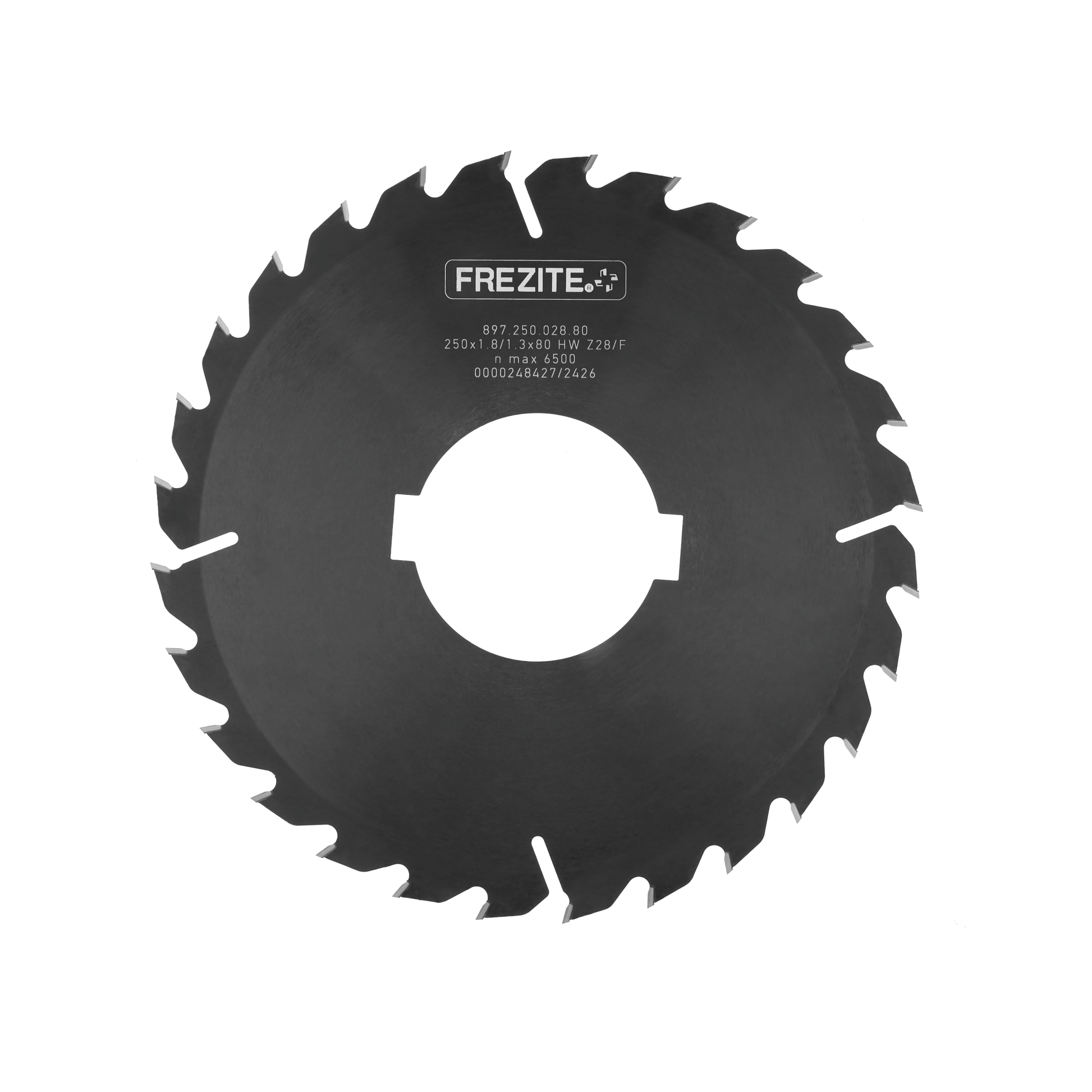

Technical information: Circular saw blade with flat grinded carbide teeth (HW). For bigger wood yield by reduced cutting widths. Body with surface treatment avoiding less resin build up.
| D | B | b | d | Z | KN | Ref. |
|---|---|---|---|---|---|---|
| 180 | 1,6 | 1,1 | 30 | 20 | 897.180.020.30 | |
| 1,6 | 1,1 | 40 | 20 | 897.180.020.40 | ||
| 250 | 1,8 | 1,3 | 80 | 28 | 2/20x5.5 | 897.250.028.80 # |
