Application: For cutting of coated wood based material such as chipboard and MDF.
Machine: For sliding table saw machines, table saws, etc.

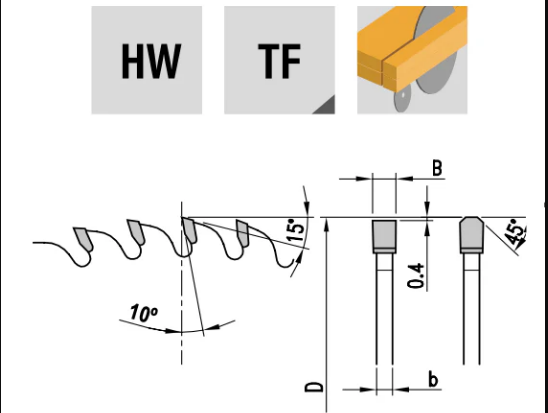

Technical information: With triple chip flat grinded carbide teeth (HW). For finish cut quality with scoring saw blade.
| D | B | b | d | Z | NL/TK | Ref. |
|---|---|---|---|---|---|---|
| 200 | 3,2 | 2,2 | 30.0 | 60TF | NL30 | 866.200.060.30 |
| 220 | 3,2 | 2,2 | 30.0 | 64TF | NL30 | 866.220.064.30 |
| 250 | 3,2 | 2,2 | 30.0 | 60TF | NL30 | 866.250.060.30 |
| 3,2 | 2,2 | 30.0 | 80TF | NL30 | 866.250.080.30 | |
| 300 | 3,2 | 2,2 | 30.0 | 72TF | NL30 | 866.300.072.30 |
| 3,2 | 2,2 | 30.0 | 96TF | NL30 | 866.300.096.30 | |
| 350 | 3,5 | 2,5 | 25.4 | 84TF | NL30 | 866.350.084.26 |
| 3,5 | 2,5 | 30.0 | 84TF | NL30 | 866.350.084.30 | |
| 3,5 | 2,5 | 30.0 | 108TF | NL30 | 866.350.108.30 |
For furniture back grooving
| D | B | b | d | Z | NL/TK | Ref. |
|---|---|---|---|---|---|---|
| 200 | 6,5 | 3,5 | 30.0 | 40TN | NL30 | 866.200.340.30 |
