Application: For cross and mitre cutting of plastic profiles, plexiglas and laminated flooring.
Machine: For sliding table saw machines, cross cutting saws, mitre saws, etc.

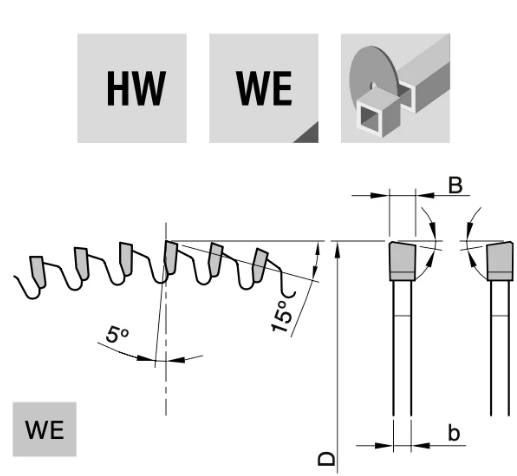

Technical information: With alternate top bevel with chanfer grinded carbide teeth (HW). With negative hook angle for cutting from above. Reduced cutting width and body thickness to reduce the cutting pressure.
| D | B | b | d | Z | NL/TK | Ref. |
|---|---|---|---|---|---|---|
| 250 | 2,8 | 2,2 | 30 | 80 | NL30 | 895.250.080.30 |
| 300 | 2,8 | 2,2 | 30 | 96 | NL30 | 895.300.096.30 |
