Application: For longitudinal cutting of softwood and hardwood, dry up to 15% wood moisture content.
Machine: For single and double spindle multi-rip machines with horizontal or vertical spindles, sliding table saws, etc.

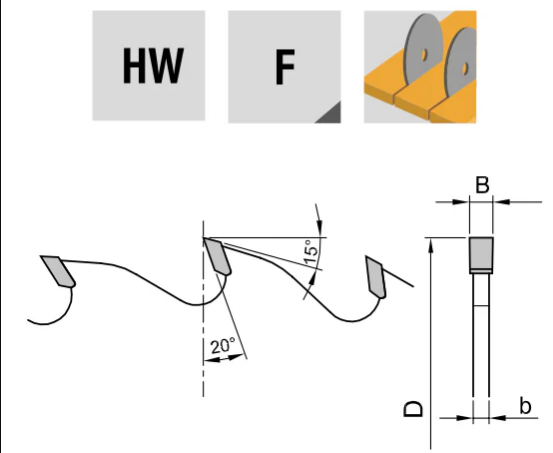

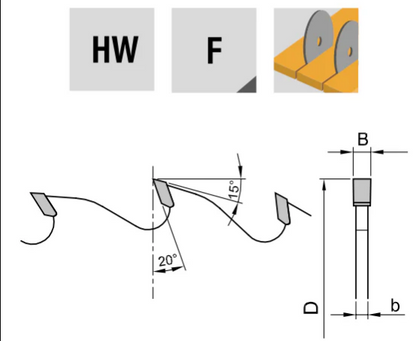

Technical information: With flat grinded carbide teeth (HW). With internal and external wiper teeth for large wood heights, preventing contact between wood and saw blade body.
| D | B | b | d | Z+RZ | KN | T max | FL max | Ref. |
|---|---|---|---|---|---|---|---|---|
| 250 | 2,8 | 2,0 | 70 | 16+2 | 4/21x6 | 50 | 120 | 870.250.116.70 |
| 2,8 | 2,0 | 70 | 20+4 | 4/21x6 | 50 | 120 | 870.250.120.70 | |
| 3,2 | 2,2 | 30 | 16+2 | 50 | 120 | 870.250.016.30 | ||
| 3,2 | 2,2 | 70 | 16+2 | 4/21x6 | 50 | 120 | 870.250.016.70 | |
| 3,2 | 2,2 | 30 | 20+4 | 50 | 120 | 870.250.020.30 | ||
| 3,2 | 2,2 | 70 | 20+4 | 4/21x6 | 50 | 120 | 870.250.020.70 | |
| 300 | 2,8 | 2,0 | 30 | 20+4 | 70 | 120 | 870.300.120.30 | |
| 2,8 | 2,0 | 70 | 20+4 | 4/21x6 | 70 | 120 | 870.300.120.70 | |
| 3,2 | 2,2 | 30 | 20+4 | 70 | 120 | 870.300.020.30 | ||
| 3,2 | 2,2 | 70 | 20+4 | 4/21x6 | 70 | 120 | 870.300.020.70 | |
| 3,2 | 2,2 | 70 | 24+4 | 4/21x6 | 70 | 120 | 870.300.024.70 | |
| 3,2 | 2,2 | 80 | 20+4 | 2/21x6+2/14x10 | 70 | 120 | 870.300.120.80 | |
| 3,4 | 2,2 | 80 | 20+4 | Raimann | 70 | 120 | 870.300.220.80 | |
| 350 | 3,5 | 2,5 | 30 | 24+6 | 95 | 120 | 870.350.024.30 | |
| 3,5 | 2,5 | 70 | 24+6 | 4/21x6 | 95 | 120 | 870.350.024.70 | |
| 3,5 | 2,5 | 75 | 24+6 | 4/21x6 | 95 | 120 | 870.350.024.75 | |
| 3,5 | 2,5 | 80 | 24+6 | 4/21x6 | 95 | 120 | 870.350.024.80 | |
| 3,6 | 2,4 | 80 | 20+4 | Raimann | 95 | 120 | 870.350.020.80 | |
| 400 | 4,0 | 2,8 | 70 | 20+4 | 4/21x6 | 115 | 130 | 870.400.020.70 |
| 4,0 | 2,8 | 30 | 28+6 | 115 | 130 | 870.400.028.30 | ||
| 4,0 | 2,8 | 70 | 28+6 | 4/21x6 | 115 | 130 | 870.400.028.70 | |
| 450 | 4,4 | 3,0 | 30 | 24+6 | 120 | 160 | 870.450.024.30 | |
| 4,4 | 3,0 | 70 | 24+6 | 4/21x6 | 120 | 160 | 870.450.024.70 |
