Application: For longitudinal and cross cutting of coated wood based panels.
Machine: For sliding table saw machines, table saws, vertical panel sizing machines, etc.

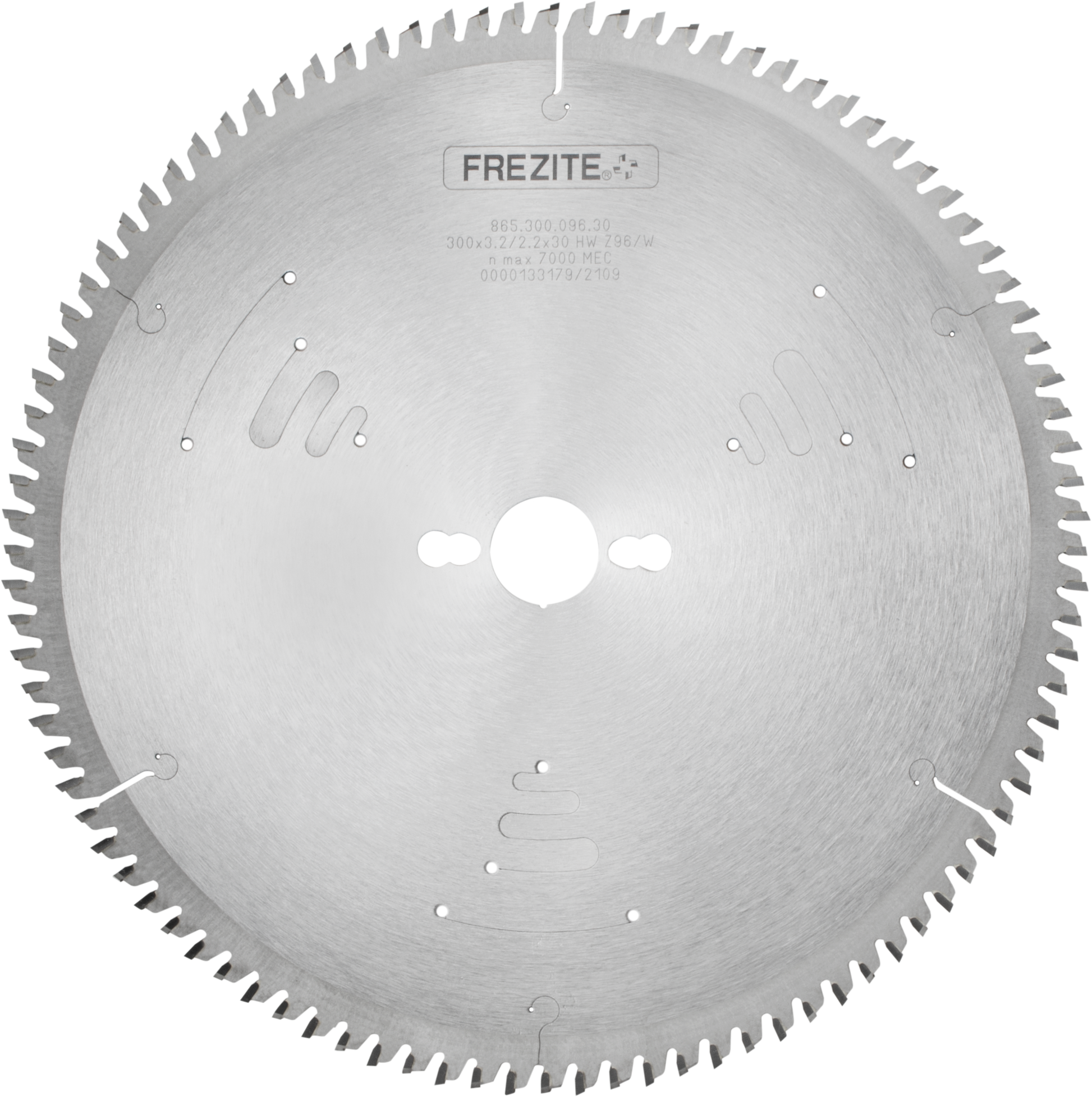

Technical information: With alternate top bevel grinded carbide teeth (HW). Saw blade produced with special carbide tips for maximum wear resistance and extra-long lifetime. To work with or without scoring saw blade.

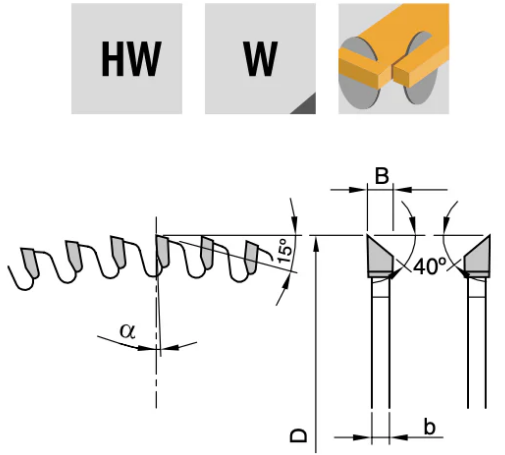

| D | B | b | d | Z | α | NL/TK | Ref. |
|---|---|---|---|---|---|---|---|
| 250 | 2,8 | 2,0 | 30 | 80 | -3º | NL30 | 865.250.280.30 |
| 3,2 | 2,2 | 30 | 80 | -2º | NL30 | 865.250.080.30 | |
| 300 | 3,2 | 2,2 | 30 | 96 | 2º | NL30 | 865.300.096.30 |
| 350 | 3,5 | 2,5 | 30 | 108 | 5º | NL30 | 865.350.108.30 |
