Application: For longitudinal and cross cutting of softwood and hardwood, dry up to 15% wood moisture content. Suitable for long-fibre wood (e.g. balsa, poplar).
Machine: For single and double spindle multi-rip machines with horizontal or vertical spindles, sliding table saws, etc.

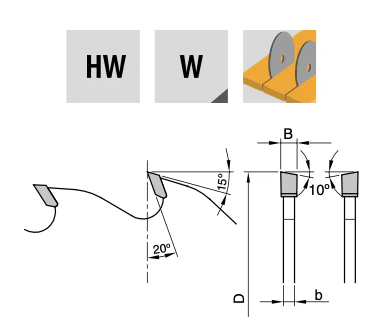

Technical information: With alternate top bevel grinded carbide teeth (HW). With internal and external wiper teeth for large wood heights, preventing contact between wood and saw blade body.
| D | B | b | d | Z+RZ | KN | T max | FL max | Ref. |
|---|---|---|---|---|---|---|---|---|
| 250 | 3,2 | 2,2 | 30 | 20+4 | 65 | 120 | 852.250.020.30 | |
| 3,2 | 2,2 | 70 | 20+4 | 4/21x6 | 65 | 120 | 852.250.020.70 | |
| 3,2 | 2,2 | 80 | 20+4 | 2/13x5+2/21x6 | 65 | 120 | 852.250.020.80 | |
| 300 | 3,2 | 2,2 | 30 | 24+4 | 80 | 120 | 852.300.024.30 | |
| 3,2 | 2,2 | 70 | 24+4 | 4/21x6 | 80 | 120 | 852.300.024.70 | |
| 3,2 | 2,2 | 80 | 24+4 | 2/13x5+2/21x6 | 80 | 120 | 852.300.024.80 | |
| 350 | 3,5 | 2,5 | 30 | 24+6 | 105 | 120 | 852.350.024.30 | |
| 3,5 | 2,5 | 70 | 24+6 | 4/21x6 | 105 | 120 | 852.350.024.70 | |
| 3,5 | 2,5 | 80 | 24+6 | 2/13x5+2/21x6 | 105 | 120 | 852.350.024.80 | |
| 400 | 4,0 | 2,8 | 30 | 28+6 | 115 | 130 | 852.400.028.30 | |
| 4,0 | 2,8 | 70 | 28+6 | 4/21x6 | 115 | 130 | 852.400.028.70 |
