Application: For longitudinal and cross cutting of softwood and hardwood, dry up to 18% wood moisture content.
Machine: For single and double spindle multi-rip machines with horizontal or vertical spindles, sliding table saws, etc.

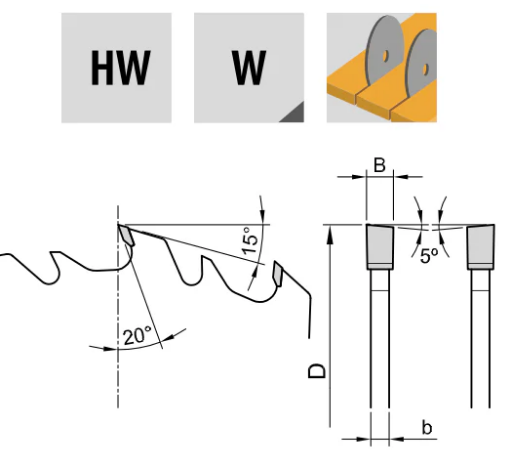

Technical information: With alternate top bevel grinded carbide teeth (HW). Internal and external wiper teeth for large wood height, preventing contact between wood and saw blade body. Body with surface treatment promoting increased cutting stability and less resin build up.
| D | B | b | d | Z+RZ | KN | T max | FL max | Ref. |
|---|---|---|---|---|---|---|---|---|
| 300 | 3,7 | 2,5 | 30 | 14+4 | 75 | 120 | 855.300.014.30 | |
| 3,7 | 2,5 | 70 | 14+4 | 4/21x6 | 75 | 120 | 855.300.014.70 | |
| 350 | 3,9 | 2,5 | 70 | 14+4 | 4/21x6 | 100 | 120 | 855.350.014.70 |
| 400 | 4,4 | 2,8 | 70 | 14+4 | 4/21x6 | 120 | 130 | 855.400.014.70 |
| 450 | 4,8 | 3,0 | 70 | 14+4 | 4/21x6 | 125 | 160 | 855.450.014.70 |
| 500 | 5,0 | 3,6 | 70 | 14+6 | 4/21x6 | 140 | 180 | 855.500.014.70 |
