Application: For longitudinal and cross cutting of softwood and hardwood boards and veneered wood based materials. For single boards and stacks of boards.
Machine: For panel sizing machines.

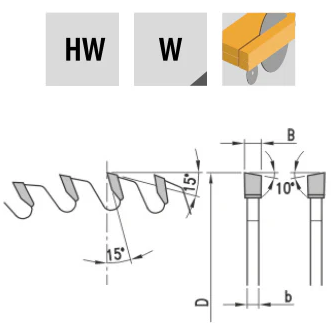

Technical information: With alternate top bevel grinded carbide teeth (HW). Saw blade produced with long life tips for maximum wear resistance and extra-long lifetime. For finish cut quality with scoring saw blade.
| D | B | b | d | Z | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|

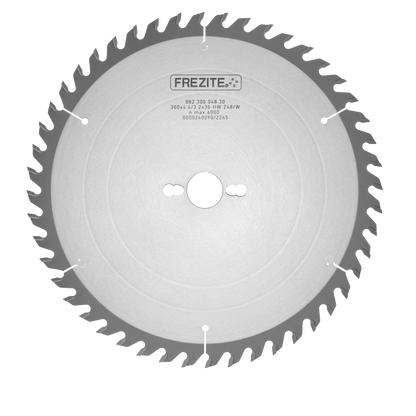

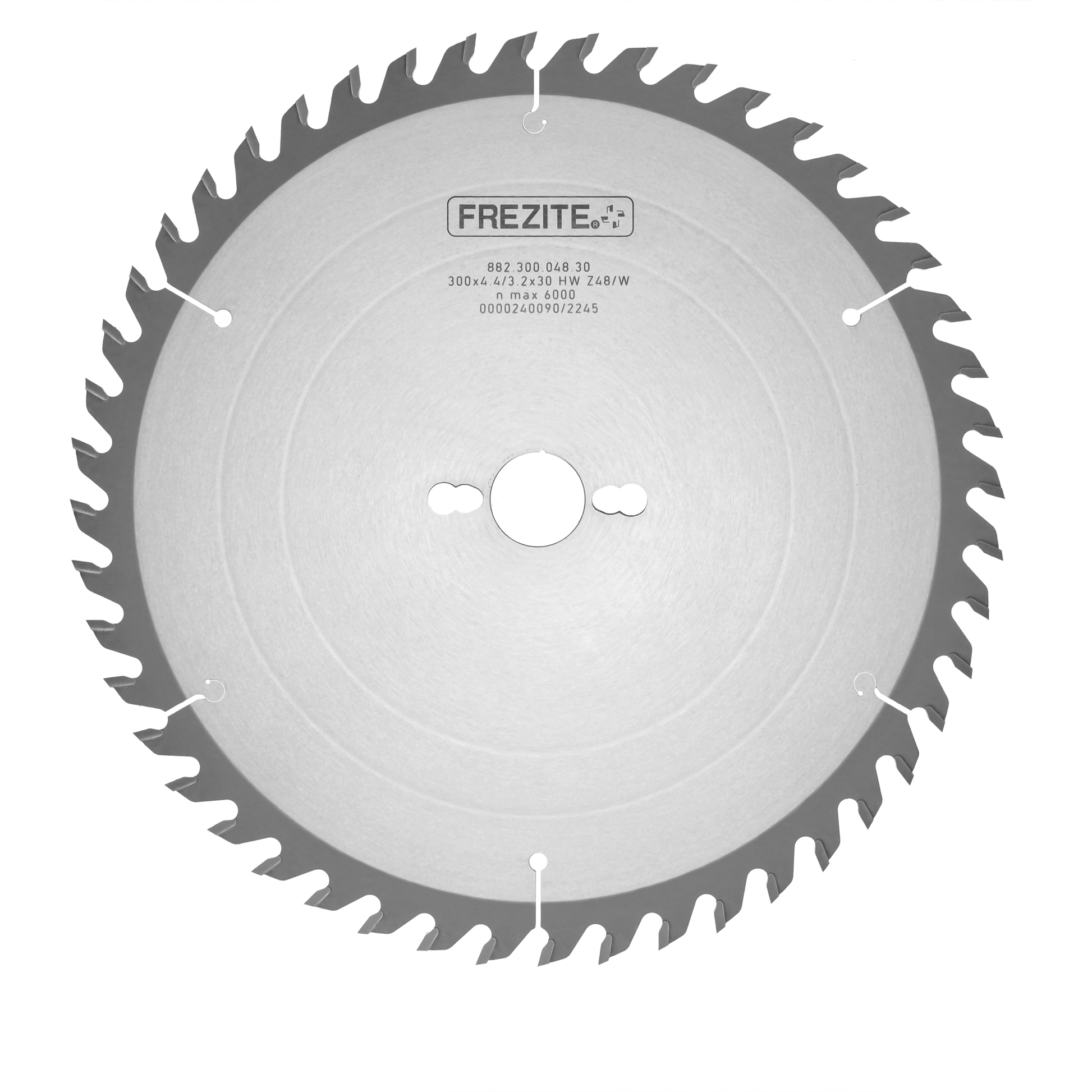

| 300 | 4,4 | 3,2 | 30 | 48 | NL30 | Panhans | 882.300.048.30 |
| 350 | 4,4 | 3,2 | 30 | 54 | NL30 | Panhans, Scherr | 882.350.054.30 |
| 4,4 | 3,2 | 30 | 72 | NL30 | Panhans, Scherr | 882.350.072.30 | |
| 4,4 | 3,2 | 60 | 54 | NL60 | Holzma, Homag, Anthon | 882.350.054.60 | |
| 4,4 | 3,2 | 60 | 72 | NL60 | Holzma, Homag, Anthon | 882.350.072.60 | |
| 4,4 | 3,2 | 75 | 54 | NL75 | 882.350.054.75 | ||
| 380 | 4,4 | 3,2 | 60 | 72 | NL60 | Holzma, Homag | 882.380.072.60 |
| 4,8 | 3,5 | 60 | 54 | NL60 | Holzma, Homag | 882.380.054.60 | |
| 400 | 4,4 | 3,2 | 30 | 72 | NL30 | Scherr, Tecmatic | 882.400.072.30 |
| 4,4 | 3,2 | 80 | 72 | NL80 | Selco | 882.400.072.80 | |
| 4,4 | 3,2 | 75 | 72 | NL75 | Giben, Euromac | 882.400.072.75 | |
| 450 | 4,4 | 3,2 | 30 | 72 | NL30+2/14/125 | Sherr, Tecmatic | 882.450.072.30 |
| 470 | 4,4 | 3,2 | 75 | 72 | NL75 | Giben | 882.470.072.75 |
| 500 | 4,4 | 3,2 | 30 | 72 | NL30 | 882.500.072.30 | |
| 4,4 | 3,2 | 80 | 72 | NL80 | 882.500.072.80 |
