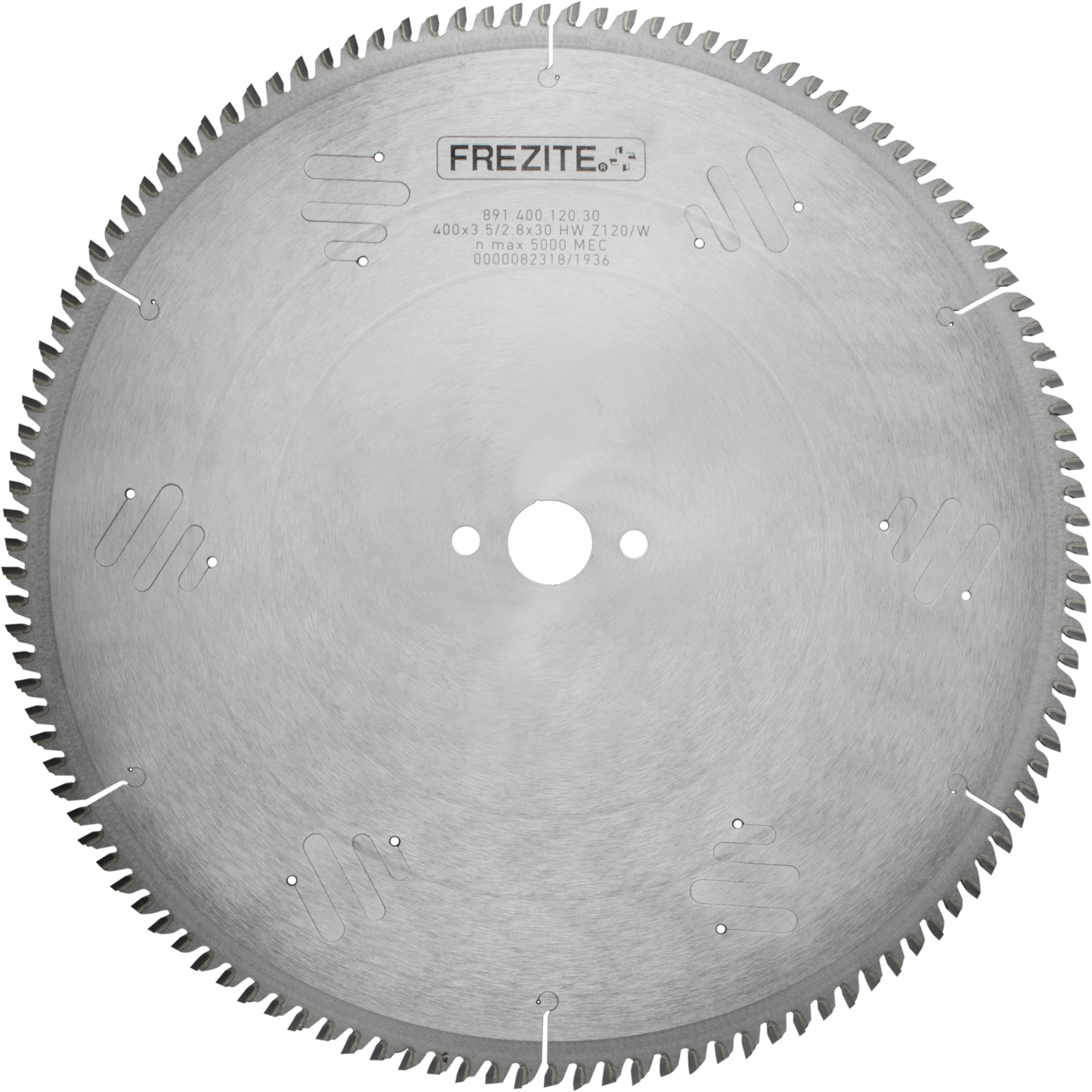

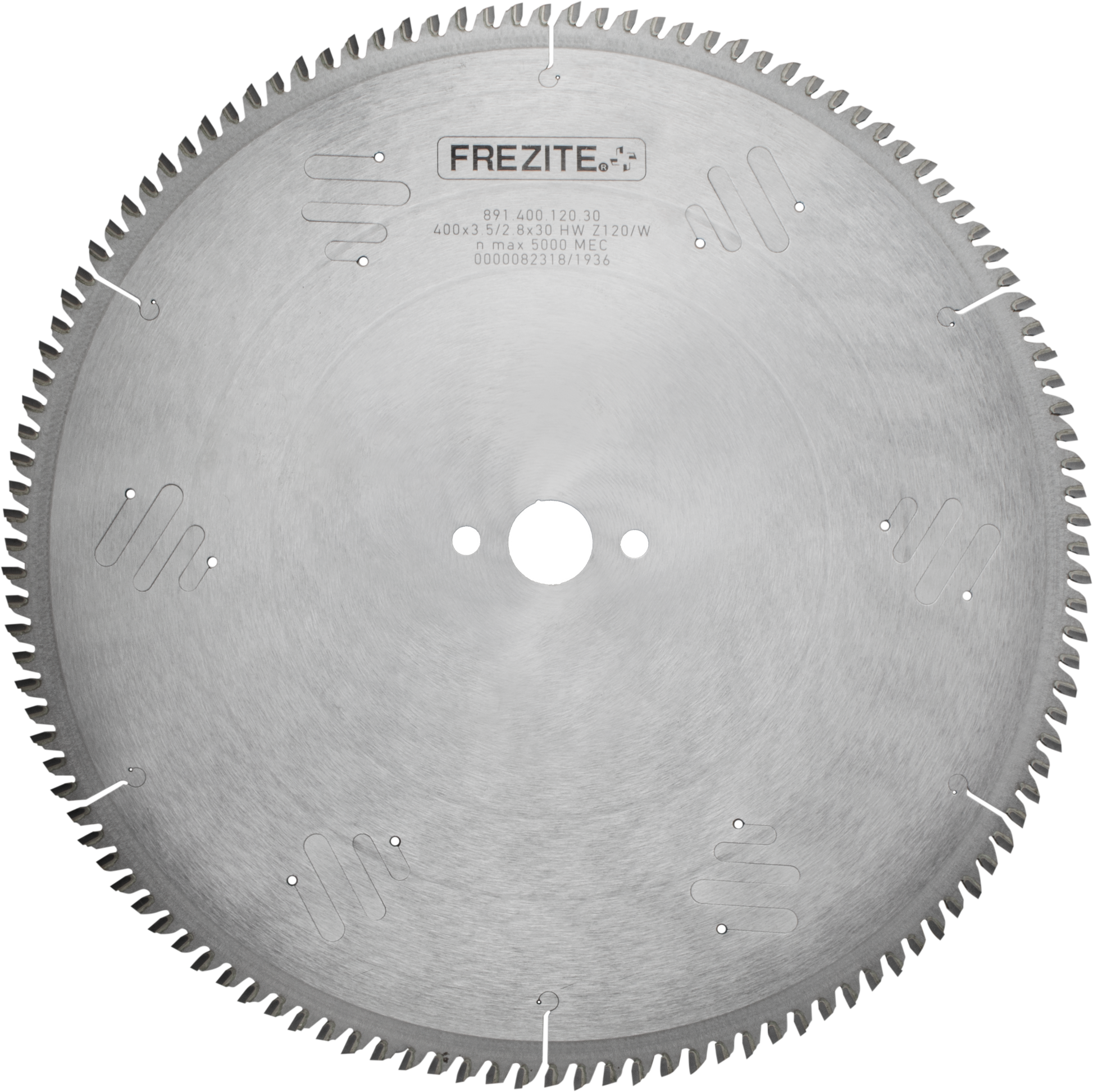

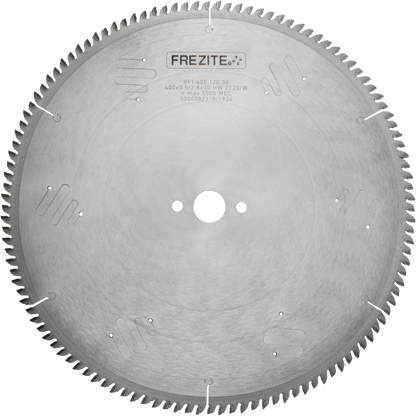

Application: Fast cut circular saw blade for cross cutting of dry softwood and hardwood in fast cutting operations (0,3 to 1,0 seconds per cycle).
Machine: For cross cutting machines, optimizers, etc.

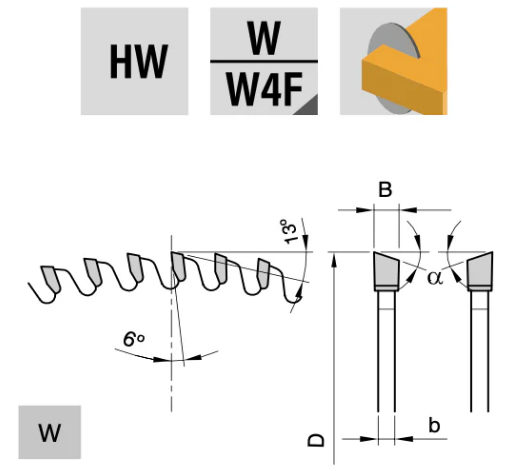

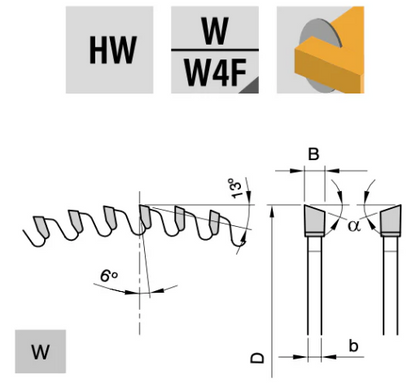

Technical information: With alternate top bevel or combination of bevel with axial angle plus flat teeth carbide teeth (HW).
| D | B | b | d | Z | α | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|---|
| 400 | 3,5 | 2,8 | 30 | 120 | 20º | 2/11/60 | Dimter | 891.400.120.30 |
| 450 | 3,9 | 3,0 | 30 | 102 | 30º | 2/11/60 | Dimter | 891.450.102.30 |
| 4,8 | 3,5 | 30 | 138 | 20º | 2/11/60+2/8/63,5 | Tiger stop | 891.450.138.30 | |
| 500 | 4,8 | 3,5 | 30 | 144 | 20º | 2/11/60+2/15/63 | Grecon 704 | 891.500.144.30 |
| 4,8 | 3,5 | 35 | 144 | 20º | 2/11/60+2/15/63 | Dimter S30+S50 | 891.500.144.35 | |
| 520 | 4,6 | 3,4 | 30 | 144 | 20º | 2/11/60+2/15/63 | Dimter | 891.520.144.30 |
| 600 | 5,4 | 4,0 | 30 | 172 | 20º | 2/11/60 | Dimter | 891.600.172.30 |
| 630 | 5,4 | 4,4 | 30 | 180 | 20º | 2/11/60 | Dimter | 891.630.180.30 |
| D | B | b | d | Z | α | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|---|
| 400 | 3,0 | 2,2 | 30 | 125 W4F | 15º | 2/11/60 | Dimter | 891.400.125.30 |
| 450 | 4,4 | 3,2 | 30 | 140 W4F | 10º | 2/11/60 | Paul | 891.450.140.30 |
