Application: For longitudinal cutting of softwood and hardwood. For demanding cuts in dry, green, and frozen wood.
Machine: For single and double spindle multi-rip machines with horizontal or vertical spindles, sliding table saws, table saws, etc.

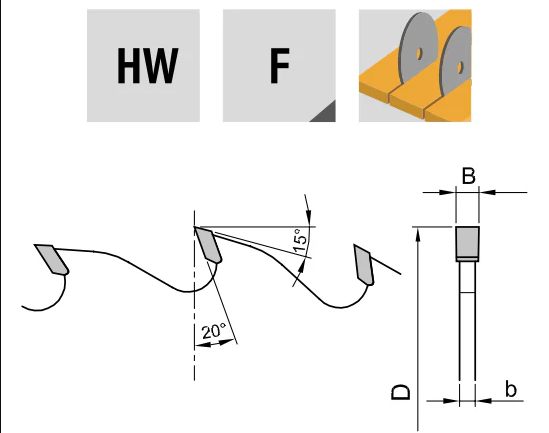

Technical information: With flat grinded carbide teeth (HW). With internal and external wiper teeth for large wood heights, preventing contact between wood and saw blade body. With reinforced body for great stability.
| D | B | b | d | Z+RZ | KN | NL/TK | T max | FL max | Ref. |
|---|---|---|---|---|---|---|---|---|---|
| 300 | 4,4 | 3,0 | 30 | 20+4 | 70 | 120 | 868.300.020.30 | ||
| 4,4 | 3,0 | 70 | 20+4 | 4/21x6 | 70 | 120 | 868.300.020.70 | ||
| 350 | 4,4 | 3,0 | 30 | 24+6 | 95 | 120 | 868.350.024.30 | ||
| 4,4 | 3,0 | 70 | 24+6 | 4/21x6 | 95 | 120 | 868.350.024.70 | ||
| 400 | 5,2 | 3,9 | 30 | 24+6 | 115 | 130 | 868.400.024.30 | ||
| 450 | 6,0 | 3,9 | 30 | 24+6 | 120 | 160 | 868.450.024.30 | ||
| 6,0 | 3,9 | 70 | 24+6 | 4/21x6 | 120 | 160 | 868.450.024.70 | ||
| 500 | 6,0 | 3,9 | 30 | 32+6 | 4/13/90 | 140 | 180 | 868.500.032.30 | |
| 600 | 6,0 | 3,9 | 30 | 36+6 | 170 | 200 | 868.600.036.30 |
