Metal Cutting

12 products

Saw Blade Application

Description

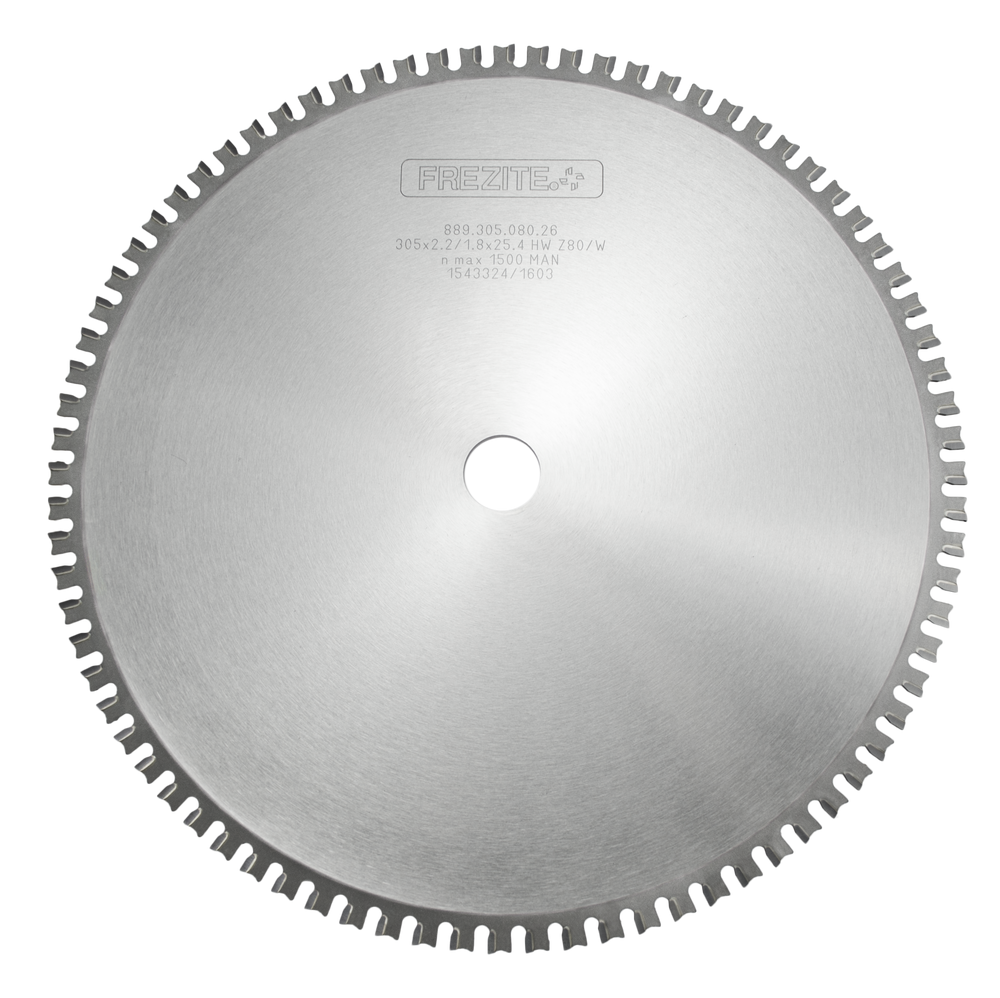

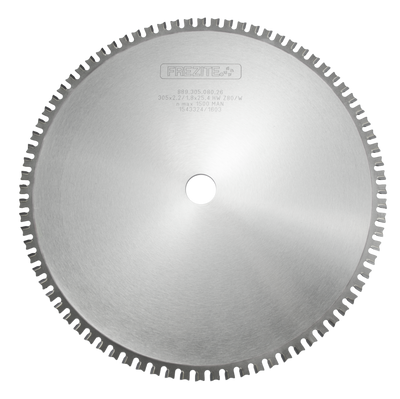

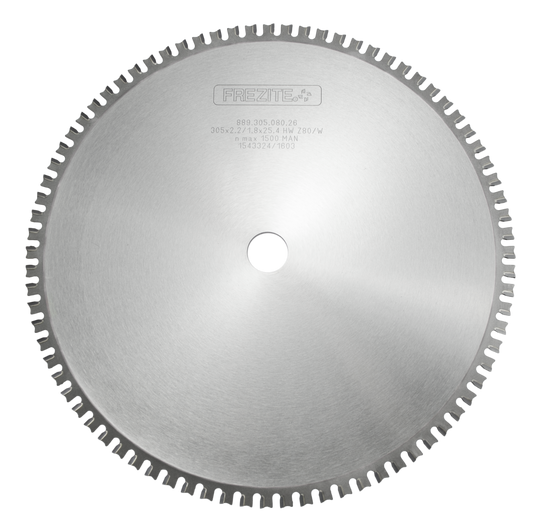

Application: For cutting of steel rods and profiles, PVC profiles with metal reinforcement, compound materials, sheets, etc. without coolants. Saw blade with D= 305 Z80 special recommended for stainless steel.

Machine: For mitre cutting machines, portable machines, etc.

Technical information: With alternate top bevel with chanfer grinded carbide teeth (HW). Special design carbide grade tips for these applications.

D B b d Z NL/TK n max Ref.
160 2,2 1,8 20 30 2800 889.160.030.20
190 2,2 1,8 30 38 2400 889.190.038.30
216 2,2 1,8 30 48 NL30 2200 889.216.048.30
230 2,2 1,8 30 44 NL30 2000 889.230.044.30
250 2,2 1,8 30 48 NL30 1800 889.250.048.30
2,2 1,8 30 60 NL30 1800 889.250.060.30
254 2,2 1,8 15,87 60 1800 889.254.060.15
2,2 1,8 30 60 NL30 1800 889.254.060.30
270 2,2 1.8 30 60 NL30 1700 889.270.060.30
305 2,2 1,8 25,4 60 1500 889.305.060.26
2,2 1,8 25,4 80 1500 889.305.080.26
2,2 1,8 30 60 NL30 1500 889.305.060.30
2,2 1,8 30 80 NL30 1500 889.305.080.30
355 2,2 1,8 25,4 90 1500 889.355.090.26
2,2 1,8 30 90 NL30 1500 889.355.090.30
400 2,8 2,2 25,4 100 1200 889.400.100.26
