Application: For cutting of coated wood based materials. For single boards and stacks of boards.
Machine: For panel sizing machines, etc.

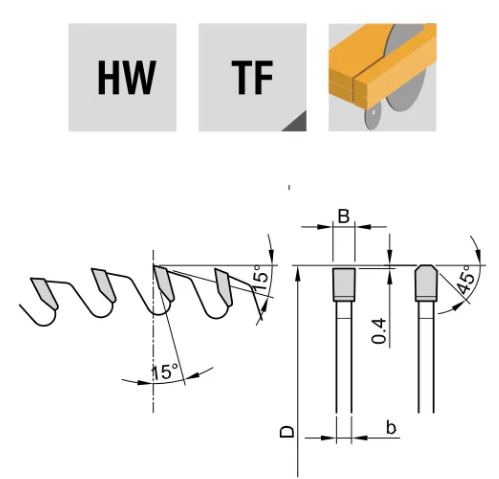

Technical information: With triple chip - triple chip grinded carbide teeth (HW). Saw blade produced with long life tips for maximum wear resistance and long lifetime. With variable pitch and noise reduction slots. Guarantee of excellent finishes in high performance applications. For finish cut quality with scoring saw blade.
| D | B | b | d | Z | NL/TK | Machine | Ref. |
|---|---|---|---|---|---|---|---|
| 310 | 4,4 | 3,2 | 60 | 72 | NL60 | Homag | 873.310.172.60 |
| 320 | 4,4 | 3,2 | 30 | 72 | NL75 | Homag CV | 873.320.172.30 |
| 4,4 | 3,2 | 65 | 72 | NL65 | Selco, Nimac, Cehisa | 873.320.172.65 | |
| 4,4 | 3,2 | 75 | 72 | NL75 | Giben | 873.320.172.75 | |
| 350 | 4,4 | 3,2 | 30 | 72 | NL30 | Mayer, Tecmatic, Panhans, Scherr | 873.350.272.30 |
| 355 | 4,4 | 3,2 | 30 | 72 | NL30+2/9/110 | Panhans, SCM, Turanlar | 873.355.172.30 |
| 4,4 | 3,2 | 65 | 72 | NL65 | Selco, Cehisa | 873.355.372.65 | |
| 4,4 | 3,2 | 75 | 72 | NL75 | Giben | 873.355.172.75 | |
| 360 | 4,4 | 3,2 | 65 | 72 | NL65 | Nimac, Selco, Cehisa | 873.360.172.65 |
| 380 | 4,4 | 3,2 | 60 | 72 | NL60 | Holzma, Homag | 873.380.372.60 |
| 4,4 | 3,2 | 65 | 72 | NL65 | Biesse, Selco, Cehisa | 873.380.172.65 | |
| 4,8 | 3,5 | 60 | 72 | NL60 | Holzma, Homag | 873.380.272.60 | |
| 430 | 4,4 | 3,2 | 75 | 72 | NL75 | Giben | 873.430.472.75 |
| 450 | 4,8 | 3,5 | 60 | 72 | NL60 | Holzma, Homag, Anthon | 873.450.372.60 |
| 470 | 4,8 | 3,5 | 70 | 72 | NL70 | Biesse, Selco | 873.470.372.70 |
| 520 | 4,8 | 3,5 | 70 | 72 | NL70 | Selco WNT 750 | 873.520.072.70 |
